Rof Electro-optic modulator 1550nm AM Fa'asologa Intensity Modulator 40G
Fa'aaliga
* Maualalo fa'aofi gau
* Malaga maualuga
* Maualalo afa-galu voltage
* Filifiliga faʻapitoa
Fa'aaogāga
⚫ faiga ROF
⚫ Tufatufaina ki quantum
⚫ Fa'ailoga leisa
⚫ Fa'aogaina o le itu-fa'ailoga
| Rof-AM Fa'asologa | Rof-AM-07 | Rof-AM-08 | Rof-AM-10 | Rof-AM-13 | Rof-AM-15 | |||
| Galulue umi | 780nm | 850nm | 1064nm | 1310nm | 1550nm | |||
| Bandwidth | 10GHz | 10GHz | 10/20GHz | 2.5GHz | 50GHz | 10GHz | 20GHz | 40GHz |
| Faaofiga leiloa | <5dB | <5dB | ＜5dB | ＜5dB | ＜4dB | |||
| Fuafuaga fa'aumatia @DC | ＞20dB | ＞20dB | ＞20dB | ＞20dB | ＞20dB | |||
| VΠ @RF (1KHz) | <3V | <3V | <4V | <3.5V | ＜6V | <5V | ||
| VΠ @Fa'aituau | ＜3.5V | ＜3.5V | <5V | <5V | <8V | <7V | ||
Fa'amatalaga Fa'atonu
| Rof | AM | XX | XXG | XX | XX | XX |
| Ituaiga: AM --- Intensity Modulator | Umi ole galu: 07---780nm 10---1060nm 13---1310nm 15---1550nm | Bandwidth: 10GHz 20GHz 40GHz 50GHz
| Mata'itu PD: PD---Faatasi ai ma PD | Ituaiga Fiber i totonu: PP---PM/PM
| Feso'ota'i mata: FA---FC/APC FP---FC/PC SP---Faiga |
R-AM-15-40G
Le umi ole 1550nm 40GHz Intensity modulator
| Parameter | Faailoga | Min | Ituaiga | Max | Vaega | ||||
| Fa'ailoga mata | |||||||||
| Galulue umi | l | 1530 | 1550 | 1565 | nm | ||||
| Fa'aofi gau | IL | 4 | 5 | dB | |||||
| Optical toe maua leiloa | ORL | -45 | dB | ||||||
| Suia le fua faatatau fa'aumatia @DC | ER@DC | 20 | 23 | 45 | dB | ||||
| Fuafuaga fa'ato'a fa'atosina | DER | 13 | dB | ||||||
| Alava mata | Ulufaleuafu | Panda PM Fujikura SM | |||||||
| uafu fa'aola | Panda PM Fujikura SM | ||||||||
| Optical fiber interface | FC/PC, FC/APC Po'o le tagata fa'aoga e fa'amaonia | ||||||||
| Fa'ailoga eletise | |||||||||
| Fa'agaoioi bandwidth(-3dB) | S21 | 28 | 30 | GHz | |||||
| Vpi galu afa-galu | RF | @50KHz |
| 4.5 | 5 | V | |||
| Fa'aituau | @Fa'aituau |
| 6 | 7 | V | ||||
| Le toe maua mai eletise | S11 | -12 | -10 | dB | |||||
| Fa'alavelave fa'aoga | RF | ZRF | 50 | W | |||||
| Fa'aituau | ZFA'AVAE | 1M | W | ||||||
| Fa'aoga eletise | V(f) | ||||||||
Tapulaa Tulaga
| Parameter | Faailoga | Vaega | Min | Ituaiga | Max |
| Malosiaga opitika ulufale | Pi totonu, Max | dBm | 20 | ||
| Ulufale RF mana | dBm | 28 | |||
| voltage fa'aituau | Vbias | V | -15 | 15 | |
| O le vevela o galuega | Luga | ℃ | -10 | 60 | |
| Teuga vevela | Tst | ℃ | -40 | 85 | |
| Susū | RH | % | 5 | 90 |

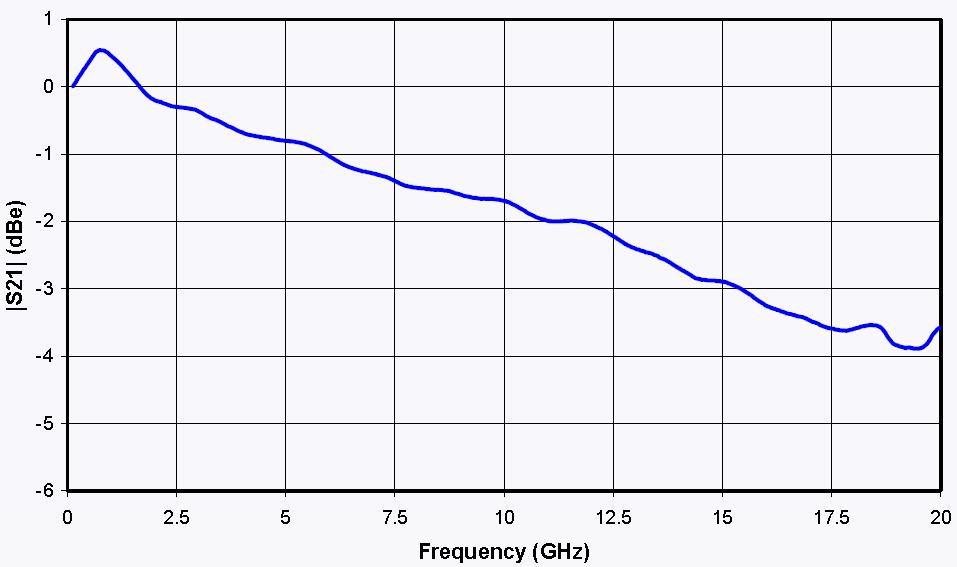

S21 Pi'o
&S11 Pi'o
S21&s11 pupuni
Ata fa'ainisinia
| PORT | Faailoga | Manatua |
| I totonu | Tau fa'aoga mata | PM Fiber (125μm/250μm) |
| I fafo | Taulaga fa'apitoa | PM ma SMF filifiliga |
| RF | RF fa'aoga uafu | SMA(f) |
| Fa'aituau | Uafu pulea faaituau | 1,2 Fa'aituau, 34-N/C |
