Ultra Compact IQ Modulator Bias Pule Automatic Bias Pule
Fa'aaliga
• Tuuina atu fa'aituau se tolu mo le IQ modulators Fa'atulagaina fa'atulagaina tuto'atasi:
•QPSK, QAM, OFDM, SSB faʻamaonia
•Polo ma Ta'alo:
Leai se tusi fa'avasegaina e mana'omia Mea uma e otometi
• I, Q lima: pulea i luga ole Peak ma Null mode Fa'atusa maualuga fa'aumatia: 50dB max1
•P lima: pulea i Q+ ma Q- modes Sa'o: ± 2◦
•Fa'ailoga maualalo: 40mm(W) × 28mm(D) × 8mm(H)
• Maualuluga mautu: fa'atinoga fa'akomepiuta atoatoa Faigofie ona fa'aoga:
• Fa'agaioiga fa'aleta'avale fa'atasi ai ma le osooso la'ititi Fa'atonu OEM fa'agaioiga e ala i le UART2
•E lua auala e tu'uina atu ai voltage fa'aituau: a. Fa'atonu Fa'atonu Fa'atonu b. Fa'amanino e le tagata fa'aoga voltage fa'aituau
Fa'atatauga
• LiNbO3 ma isi IQmodulators
•QPSK, QAM, OFDM, SSB ma isi
• Feso'ota'iga Feso'ota'i
Fa'atinoga

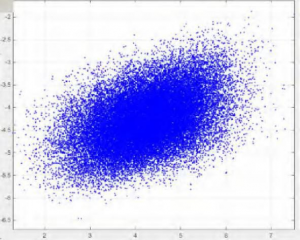

Ata 1. Fa'aputuga Fetu (e aunoa ma le pule)
Ata 2. QPSK Constellation (fa'atasi ai ma le pule

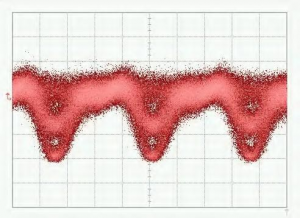

Ata 3. QPSK-Malamalama mata
Ata 5. 16-QAM Fa'asologa o fetu
Ata 4. QPSK Alaleo
Ata 6. 16-QAM Alaleo
Fa'amatalaga
| Parameter | Min | Ituaiga | Max | Vaega |
| Puleaina Fa'atinoga | ||||
| I, Q lima e pulea i lugaNull(Laiti) peManu'a(Male maualuga) manatu | ||||
| Fuafuaga fa'aumatia | MER1 | 50 | dB | |
| P lima e pulea i lugaQ+(taumatau quadrature) peQ-( taumatau quadrature) manatu | ||||
| Sa'o ile Quad | −2 | +2 | tikeri2 | |
| Taimi fa'amautu | 15 | 20 | 25 | s |
| Eletise | ||||
| Malosiaga lelei voltage | +14.5 | +15 | +15.5 | V |
| Malosiaga lelei i le taimi nei | 20 | 30 | mA | |
| Malosiaga leaga | -15.5 | -15 | -14.5 | V |
| Malosiaga le lelei | 8 | 15 | mA | |
| Fa'asologa o le voluma o fafo | -14.5 | +14.5 | V | |
| Tele amplitude | 1%Vπ | V | ||
| Optical | ||||
| Malosiaga opitika ulufale3 | -30 | -8 | dBm | |
| Ole umi ole galu | 1100 | 1650 | nm | |
1. MER e faasino ile Modulator Extinction Ratio. O le fua fa'atatau ua ausia e masani lava o le fua fa'atatau o le modulator ua fa'amaoti mai i le fa'amaumauga o le modulator.
2. Fa'amolemole ia maitauina e le fetaui le mana fa'apipi'i ma le mana fa'aituau i le tulaga fa'aitu ua filifilia. O lo'o fa'atatau i le maualuga o le malosi opitika e mafai e le modulator ona fa'aulu atu i le pule pe a fa'aituau volitaimi mai le −Vπ i le +Vπ .
Fa'aoga Fa'aoga
Ata5. Fonotaga
| Vaega | Fa'agaioiga | Fa'amatalaga |
| Toe setiina | Fa'aofi le osooso ma toso i fafo pe a uma le 1 sekone | Toe seti le pule |
| Malosiaga | Punavai mo le pule fa'aituau | V- fa'afeso'ota'i le eletise leaga o le eletise |
| V + faʻafesoʻotaʻi le eletise lelei o le eletise | ||
| O le taulaga ogatotonu e fesoʻotaʻi ma le eletise eleele | ||
| Polar1 | PLRI: Faaofi pe toso i fafo le osooso | leai se osooso: Null mode; fa'atasi ai ma le osooso: Tulaga maualuga |
| PLRQ: Fa'aofi pe toso ese le osooso | leai se osooso: Null mode; fa'atasi ai ma le osooso: Tulaga maualuga | |
| PLRP: Fa'aofi pe toso ese le osooso | leai se osooso: Q+ mode; ma le osooso: Q- faiga | |
| LED | Fa'aauau pea | Galue i lalo ole tulaga mautu |
| On-off po'o-off-on ta'i 0.2s | Fa'agaioiina o fa'amaumauga ma su'esu'e le nofoaga e fa'atonutonu ai | |
| On-off po'o-off-on ta'i 1s | E vaivai tele le mana fa'aoga opitika | |
| On-off po'o le tape-on ta'i 3s | E malosi tele le mana fa'apipi'i | |
| PD2 | Fesootai ma le photodiode | PD uafu faʻafesoʻotaʻi le Cathode o le photodiode |
| GND uafu fa'afeso'ota'i le Anode o le photodiode | ||
| Vaita'i Voltages | I totonu, Ip: Bias voltage mo I lima | Ip: Itu lelei; I: Itu leaga po'o eleele |
| Qn, Qp: Fa'aituau voltage mo Q lima | Qp: Itu lelei; Qn: Itu le lelei po'o le eleele | |
| Pn, Pp: Fa'aituau voltage mo P lima | Pp: Itu lelei; Pn: Itu leaga po'o eleele | |
| UART | Fa'atino le pule e ala ile UART | 3.3: 3.3V faasinomaga voltage |
| GND: Eleele | ||
| RX: Maua le pule | ||
| TX: Tuuina atu o le pule |
1 Polar e fa'alagolago ile fa'ailoga RF system. Afai e leai se faʻailoga RF i le faiga, e tatau ona lelei le polar. A faʻaalia le faʻailoga RF e sili atu nai lo se tulaga, o le polar o le a suia mai le lelei i le leaga. I le taimi nei, o le Null point ma le Peak point o le a fesuiai le tasi i le isi. Q + point ma Q-point o le a fesuiai le tasi ma le isi. Polar switch e mafai ai e le tagata ona suia le polar
tuusao e aunoa ma le suia o vaega o galuega.
2Na'o le tasi le filifiliga e tatau ona filifilia i le va o le fa'aogaina o le photodiode pule po'o le fa'aogaina o le photodiode modulator. E fautuaina le fa'aogaina o le photodiode e pulea mo su'esu'ega a le Lab mo mafuaaga e lua. Muamua, o le pule o le photodiode ua faʻamautinoa uiga lelei. Lona lua, e sili atu ona faigofie le fetuutuunai o le malamalama i totonu intensity.If faʻaaogaina le photodiode totonu o le modulator, faamolemole ia mautinoa o le gaosiga o loʻo i ai nei o le photodiode e matua faʻatusatusa i le mana faʻaoga.
Rofea Optoelectronics ofo atu se laina oloa o pisinisi Electro-optic modulators, Phase modulators, Intensity modulator, Photodetectors, Laser moli puna, DFB lasers, Optical amplifiers, EDFA, SLD laser, QPSK modulation, Pulse laser, Light detector, Paleni photodetector, avetaavale Laser , Fiber optic amplifier, Optical power meter, Broadband laser, Tunable laser, Optical detector, Laser diode avetaʻavale, Fiber amplifier. Matou te tuʻuina atu foʻi le tele o modulators faʻapitoa mo faʻasalalauga, e pei o le 1 * 4 array phase modulators, ultra-low Vpi, ma le ultra-high extinction ratio modulators, faʻaaoga muamua i iunivesite ma inisitituti.
Faamoemoe o le a fesoasoani a matou oloa ia te oe ma au suʻesuʻega.
